Copper Tube Terminal Crimping Tool |
| |
HX-50B / 50C / 50D
|
HX-120A / 120B /150B 150SC |
HX-245B |
| |
|
|

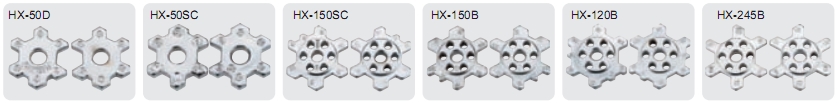

The crimping tools is used for non-welding and standard electrical connection. The mould of the crimping dies is made of SCM-40 hardest tool steel. It is with the characteristics of long life, accurate bore diameter and good crimping effect. |
 |
 |
| |
|
| |
|
|
 |
| |
|
|
Part Numbers |
Range of Application |
Capacity |
Length |
Weight |
Cu, Al Terminal Crimping |
HX-50B |
BS Standard type terminals |
6.0-50 mm2 |
390mm |
1.3Kg |
HX-50T |
BS Standard type terminals |
6.0-50 mm2 |
390mm |
1.3Kg |
HX-50SC |
For SC cable lugs |
6.0-50 mm2 |
390mm |
1.3Kg |
HX-50D |
For DIN46235 copper terminals |
6.0-50 mm2 |
390mm |
1.3Kg |
HX-120D |
BS Standard type terminals |
6-120 mm2 |
620mm |
4Kg |
HX-120B |
BS Standard type terminals |
10-120 mm2 |
620mm |
4Kg |
HX-120T |
BS Standard type terminals |
16-120 mm2 |
620mm |
4Kg |
HX-150B |
BS Standard type terminals |
25-150 mm2 |
620mm |
4Kg |
HX-150SC |
For SC cable lugs |
25-150 mm2 |
620mm |
4Kg |
HX-245B |
BS Standard type terminals |
70-240 mm2 |
980mm |
5.6Kg |
|
| |
|
|
| |
|
|
CT-38 |
CT-80 |
CT-150 |
| |
|
|
|
|
|
| |
|
|
Crimping pliers CT-38 is applicable for non-welding crimping complied with standard electrical connection. The material of the dies is accurate SK-5 tool steel with long life. Adjust the jaw diameter according to the sizes of terminals. |
Crimping pliers CT-80 is applicable for non-welding crimping complied with standard electrical connection. The material of the dies is accurate SK-5 tool steel with long life. Adjust the jaw diameter according to the sizes of terminals. |
Crimping pliers CT-150 is applicable for non-welding crimping complied with standard electrical connection. The material of the dies is accurate SK-5 tool steel with long life. Adjust the jaw diameter according to the sizes of terminals. |
| |
|
|
Range of Application |
Capacity |
8-38mm2 |
AWG |
8-2 |
Length |
570mm |
Weight |
2.2Kg |
|
Range of Application |
Capacity |
8-95mm2 |
AWG |
8-3/0 |
Length |
635mm |
Weight |
3.2Kg |
|
Range of Application |
Capacity |
16-150mm2 |
AWG |
8-250/300MCM |
Length |
765mm |
Weight |
5.2Kg |
|
| |
|
|
| |
KH-95 |
KH-150 |
KH-230 |
| |
|
|
|
|
|
| |
|
|
The crimping tools is used for non-welding and standard electrical connection. All the components are made of special steel, treated by special quenching and annealing. The head of the mouth tool has been polished. The tools is with the characteristics of long life and the diameter of the crimping month can be adjusted according to the size of the terminal. |
The crimping tools is used for non-welding and standard electrical connection. All the components are made of special steel, treated by special quenching and annealing. The head of the mouth tool has been polished. The tools is with the characteristics of long life and the diameter of the crimping month can be adjusted according to the size of the terminal. |
The crimping tools is used for non-welding and standard electrical connection. All the components are made of special steel, treated by special quenching and annealing. The head of the mouth tool has been polished. The tools is with the characteristics of long life and the diameter of the crimping month can be adjusted according to the size of the terminal. |
| |
|
|
Range of Application |
Capacity |
16-95mm2 AL/CU |
AWG |
6-3/0 |
Length |
630mm |
Weight |
3.6Kg |
|
Range of Application |
Capacity |
10-120mm2 AL/CU |
AWG |
8-250/300MCM |
Length |
610mm |
Weight |
3.1Kg |
|
Range of Application |
Capacity |
10-240mm2AL/CU |
AWG |
8-500MCM |
Length |
980mm |
Weight |
4.7Kg |
|
| |
|
|
| |
|
|
FS35K |
| |
|
|
|
| |
|
|
Range of Application |
10-150mm2(Cu) 6-120mm2(Al) |
Crimping die |
10,16,25,35,50,70,95,120,150mm2 |
Length |
420~590mm |
Weight |
2.5Kg |
|
| |
|
|
| |
|
|
FS22K |
| |
|
|
|
| |
|
|
Range of Application |
16-300mm2(Cu) 10-240mm2(Al) |
Crimping die |
10,16,25,35,50,70,95,120,150,240,300mm2 |
Length |
580~860mm |
Weight |
6.2Kg |
|
| |
|
|
| |
|
|
FS-300JYX1 |
| |
|
|
|
| |
|
|
|
| |
|
|
Range of Application |
16-300mm2 |
Crimping die |
6T |
Length |
12mm |
Weight |
16,25,35,50,70,95,120,150,185,240,300mm2 |
|
| |
|
|
| |
|
|
|
|
|
| |
|
